What it is

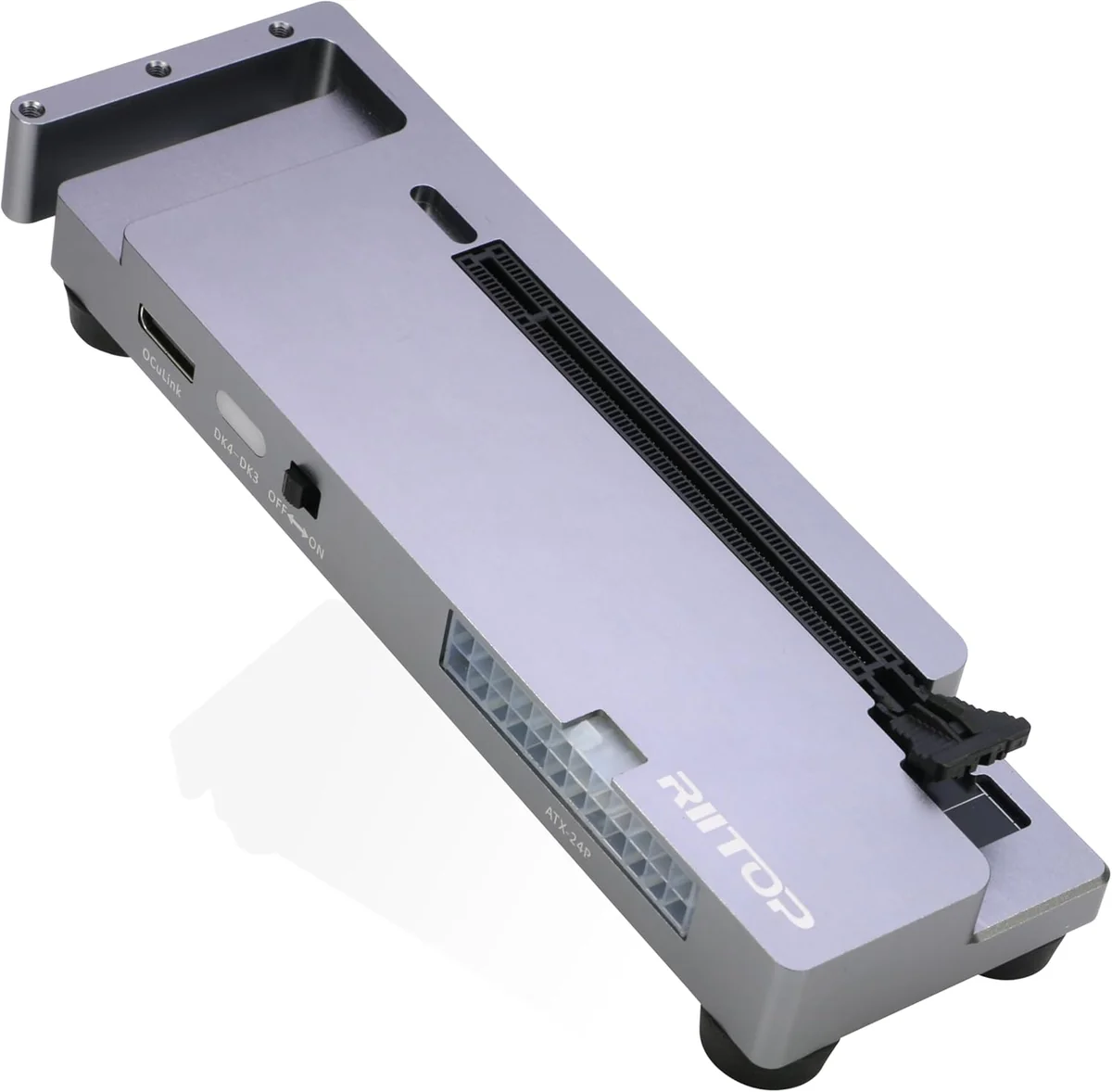

The RIITOP OCuLink eGPU Dock is the cheapest honest way to bolt a full-size desktop graphics card onto a mini PC. It’s an open-frame, bring-your-own-everything enclosure: an OCuLink SFF-8612 port on one end, a PCIe 4.0 x16 slot on the other, and a steel baseplate with a couple of support pillars to hold the card upright. There is no GPU in the box and no power supply — you supply both. What you get is the bridge, the cable, and the brackets.

That sounds austere, and it is. But it’s also the entire point. By skipping the GPU, the PSU, and the pretty aluminum shell that turns rival enclosures into $250–$400 products, RIITOP gets the cost of “run a real GPU off OCuLink” down to roughly the price of a decent mechanical keyboard. If you already own a desktop graphics card and a spare ATX or SFX power supply, this is the missing $75 part.

Interface & bandwidth: how fast is OCuLink, really?

The dock connects over OCuLink SFF-8612, which carries a native PCIe 4.0 x4 link — four lanes at 16 GT/s each, for a headline 64 Gbps (8 GB/s). Crucially, OCuLink is a direct PCIe tunnel: there’s no protocol conversion the way there is with USB4 or Thunderbolt. The mini PC’s CPU talks to the GPU over raw PCIe, so latency is low and the real-world penalty is small.

In practice, an OCuLink x4 link costs you roughly 5–10% of gaming performance versus the same card in a desktop’s full x16 slot. That gap widens at lower resolutions (where the CPU and bus matter more) and shrinks at 4K (where the GPU itself is the bottleneck). For comparison, Thunderbolt 4 and USB4 top out near 32–40 Gbps with more overhead — OCuLink is the faster, cleaner pipe, which is exactly why mini-PC makers keep adding the port.

One caveat the slot can’t escape: the physical connector is x16, but the electrical link is x4. Your RTX 5080 will seat and run fine — it just won’t see more than four lanes of bandwidth. For most single-GPU gaming and inference workloads that’s a non-issue; for bandwidth-hungry multi-GPU or heavy PCIe-DMA workloads, know the ceiling going in.

If your host has both ports, OCuLink wins on raw throughput and latency. USB4/Thunderbolt remains the more convenient option — hot-pluggable, single-cable, often bus-powered for the dock electronics — but it leaves measurable frames on the table. The RIITOP dock is OCuLink-only: there’s no USB4 fallback, so it’s only useful on a host that exposes a native OCuLink port.

What GPUs and hosts it supports

Because it’s an open frame, GPU size is a non-issue — there’s no lid to close, so a triple-slot, 340 mm RTX 5090D fits as easily as a compact RX 7600. RIITOP lists official support for the NVIDIA RTX 50 Series (5090D / 5080 / 5070 Ti / 5070) and AMD RX 7000 Series, and in practice any PCIe graphics card that your chosen PSU can feed will run.

Host compatibility is the part to check before you buy. This dock needs a native OCuLink (SFF-8612) port on the host — it is not a USB or Thunderbolt accessory. Mini PCs that ship with OCuLink out today include the GMKtec K8 Plus, the GMKtec EVO-X2 Strix Halo box, the Minisforum MS-A2, and the AOOSTAR G-Flip AI370. Some laptops and handhelds add OCuLink via an M.2 adapter, but the cleanest experience is a host with the port built in. If your mini PC only has USB4, this is the wrong dock — you’d want a USB4 enclosure instead.

Driver-wise, it presents as a standard PCIe device, so Windows 10/11, Linux, and macOS all see the card normally. NVIDIA users on a few host/BIOS combinations occasionally hit the classic Error 43 until a clean driver reinstall or a BIOS “above-4G decoding” toggle sorts it out — a known eGPU quirk, not specific to RIITOP.

Build, power, and cooling

There’s not much to the build, and that’s deliberate. A steel base, an OCuLink-to-PCIe bridge board, two copper support pillars to brace the far end of a heavy card, and a bracket to mount your power supply. The box also includes the OCuLink SFF-8611 4i cable, the PSU bracket, and a screw kit.

Power is where the “bring your own” part demands attention. You connect a standard ATX or SFX PSU directly to the GPU and the dock — RIITOP’s guidance is to match the PSU to the card and leave headroom, and we’d echo the common rule of roughly 40% above the GPU’s full-load draw. A 320 W RTX 5080 wants a 650W-class unit minimum; a 5090D wants 1000W. Because the frame is open, cooling is whatever your GPU’s own fans provide — there’s no enclosure airflow to design around, which is honestly an advantage for a hot triple-fan card.

Pricing and where to buy

This is the budget pick, and the price reflects it. RIITOP’s own store lists the dock around $130, while the Amazon listing and bare-bones generic equivalents run as low as $45–$75. Call it $75–$130 for the dock alone, depending on retailer and sale.

Remember that’s the entry fee, not the total. You still need a GPU and a power supply. But if both of those are already sitting in a closet, the RIITOP dock is the least expensive route to a real desktop GPU on a mini PC — a fraction of the cost of an all-in-one enclosure like the AOOSTAR AG02 or a Minisforum DEG2.

What we’d flag

  • No hot-plug. The OCuLink link is locked — you must power the system fully down before connecting or disconnecting the cable. Yank it live and you risk the host, the dock, or the card. This is the single most important operational rule.
  • OCuLink-only, no USB4 fallback. Useless on a host without a native OCuLink port. Confirm your mini PC has one before ordering.
  • Bring-your-own PSU complexity. You’re wiring a loose ATX power supply to an open board. The PSU bracket helps, but this is a tinkerer’s product, not a plug-and-play console.
  • Live 12V pins and an exposed card. Open-frame means open. Keep liquids, pets, and curious fingers away, and don’t run it on a conductive surface.
  • x4 electrical ceiling. The x16 slot is mechanical; the link is four lanes. Fine for one gaming GPU, a real limit for bandwidth-bound multi-card setups.

Verdict

The RIITOP OCuLink eGPU Dock does exactly one thing and does it cheaply: it turns a 64Gbps OCuLink port into a full PCIe 4.0 x16 slot with no size limits, then gets out of the way. It asks you to bring your own GPU, your own PSU, and a little patience for the no-hot-plug, open-frame workflow — and in exchange it costs a fraction of every enclosed rival.

If you own an OCuLink-equipped mini PC and a spare desktop graphics card, this is the most cost-effective eGPU bridge you can buy, and the ~5–10% bandwidth penalty is a fair trade for desktop-class GPU power in a tiny system. If you want a sealed, hot-pluggable, plug-and-play box — or your host only has USB4 — look elsewhere. For the budget-minded mini-PC tinkerer, though, the RIITOP dock is an easy recommendation.
